UseCases

To demo/show and test the application with UseCases, the WorkflowModeler is needed. The WorkflowModeler is a web application that can be used to create and edit workflows. It can be found in the following repository: https://github.com/PlanQK/workflow-modeler

To create a UseCase you can start the Docker Compose from the UseCase repository: https://github.com/SeQuenC-Consortium/SeQuenC-UseCases/

The following services should now be available under: - qunicorn: localhost:5005/swagger-ui/ - workflow-modeler: localhost:8080/ - camunda: localhost:8078/camunda/app/

To create a new UseCase check the README of the UseCase repository.

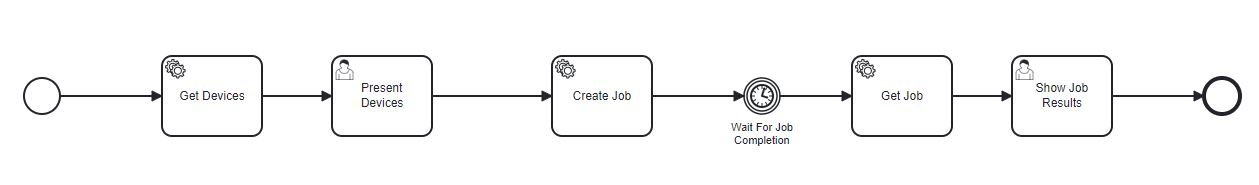

Example UseCase: Get Devices and Create Job

  1. Get all devices

  2. UserTask: Let the user evaluate the results, the user can now select a device

  3. Create a job with the chosen device, and other user inputs

  4. Get the results/details of the job

  5. UserTask: Let the user evaluate the results

    ../_images/use_case_1_bpmn.JPG
